ABOUT THIS ITEM

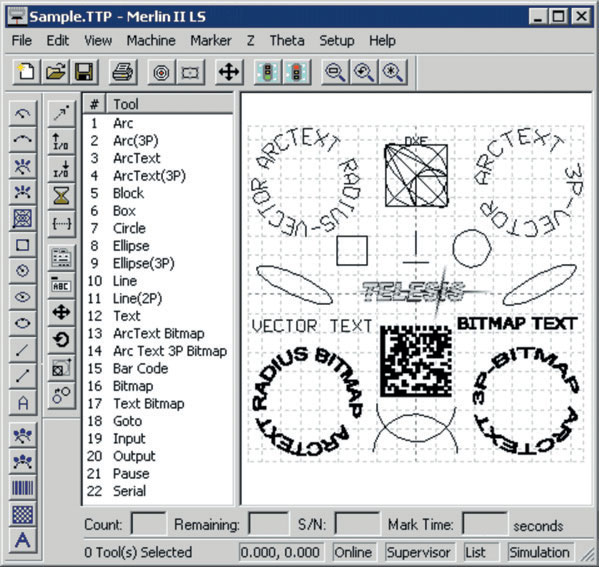

The powerful Merlin® II LS Visual Design Software package is capable of driving any of the core TELESIS Laser Products. Each system is shipped with a fully functioning version of the Software (on CD), that allows for off-line program development.

TELESIS LASER SOFTWARE FEATURES:

• Specially Designed by TELESIS – for 32 bit and 64 bit Windows® operating systems, compatible with Windows 2000,
  Windows XP, Windows VistaTM, Windows® 7 or Windows® 8
• Import a wide range of Graphic Formats including DXF from AutoCADTM, Adobe Illustrator, Windows® Bitmaps, True Type Fonts as Vector or Raster Files.
• Supports 4 Axis Movement (X,Y, Z & Rotary)
• Supports marking-on-the-fly (MOTF)
• Highlight, click and mark!

COMPUTER REQUIREMENTS:

• Pentium®III with RAM as recommended per operating system
• 2 GB Hard Disk Drive, CD-ROM drive
• SVGA Video, Sound Card
• SVGA Monitor, Mouse and Keyboard
• Additional application dependent requirements may include one RS-232 Serial Port, two USB Ports,
  two Ethernet Ports, two Half-length PCI Slots

OPTIONAL AUTOMATED MARKING INTERFACE (AMI) VERSION:

Our AMI version of Merlin® II LS addresses the need for a safe, easy operator interface that allows barcode scanning to load patterns, load a picture of the part and fixture, and insert the marking data in the proper field all without the need of a keyboard - virtually mistake free.
