ABOUT THIS ITEM

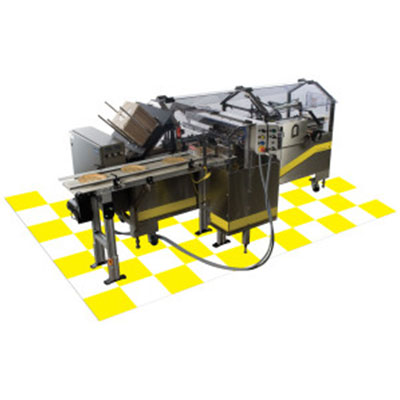

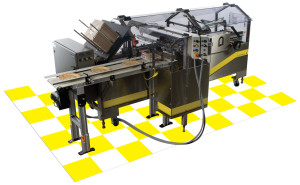

The Spartan is a rugged, mechanical, automatic horizontal cartoner for erecting, loading and closing end load cartons at speeds of up to 40 carton per minute. It’s method of operation is:

• End load carton is removed from a supply magazine via vacuum system
• Carton is erected at a single product load station
• Product is manually or automatically (optional) horizontally loaded into carton
• Loaded carton is transported to the closing position for tuck closure or sealing with either hot melt glue or hot air
• A completed carton is then automatically delivered from the machine to a convenient working height

Features

• Sanitary Construction (essentially stainless steel)
• Intermittent motion
• Up to 40 cartons per minute (option for up to 60 cartons per minute)
• PLC Controls
• Accommodates glue sealing, tuck closure, gable top, or hot air closure – Paperboard or corrugated
• Left hand or Right hand load
• Straight back discharge (options for Left hand or Right hand discharge)

Specs

Size Range*: (Carton Size LxWxD) Min 2” x 1” 5” (51 x 25 x 127mm) Max 10” x 4” x 12” (254 x 102 x 305mm)
*The Spartan can be quoted to handle cartons outside of range listed above upon request.

Speed: Up to 40 cartons per minute (depending on carton style and other factors) Option for up to 60 cartons per minute
Electrical: 220 volts, 50/60 Hz, Single Phase
Air: 80 psi (5,5 bar) Volume consumption approximately 1.6 CFM 8.5SCFM (46 Liters/min)
Shipping: Normally less than 1900 lbs (860 kg)
